3.5mm_Riser

(c) Philipp Schilk, 2020

Summary

A small riser PCB that allows a 3.5mm Audio Jack to be elevated above the main PCB.

This allows up to two audio jacks to be mounted on top of another connector.

As this is intended as an input, the channels are grounded through a 10K resistor when no jack is inserted. If this is undesired, R1 should not be populated.

Status

Currently waiting on prototype.

Design is untested!

Included

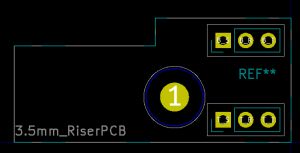

Footprint:

Symbol:

Specifications

Audio Jack: PJ-313D-6A (lcsc.com)

Mounting Screw: M3

Standard 2.54mm PinHeaders

Overview

RiserBoard_Symbol:

The EESCHEEMA Symbol

RiserBoard_Footprint:

The PCBNEW footprint.

Also includes step files of riser boards, that if placed in the project folder/added to the footprint improve the 3d Model.

RiserBoard_PCB:

KiCad Project for the RiserBoard PCB. Also includes Schematic and gerbers.

Doc:

Renders
